EXCAVATOR BUCKETS LLOYD ENGINEERING Screening Buckets

Lloyd Engineering Screening Buckets. Often Copied, Never Beaten!

Prices starting from $13,000 - $45,000.
Price is dependent on rate of exchange at time of quotation.

Various models:
RS 2-4 : 2-4 Ton Excavator
RS 3-5 : 3-5 Ton Excavator
RS 4-9 : 4-9 Ton Excavators
RS 10-20 : 10-20 Ton Excavators
RS 20-30 : 20-30 Ton Excavators

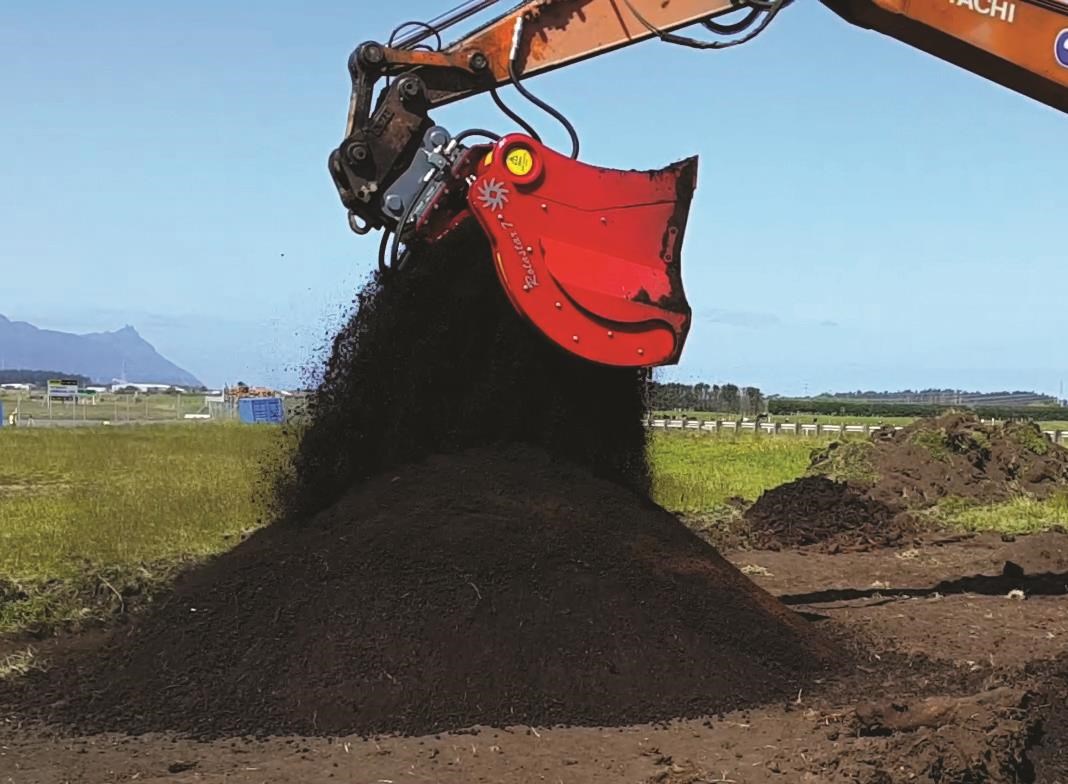

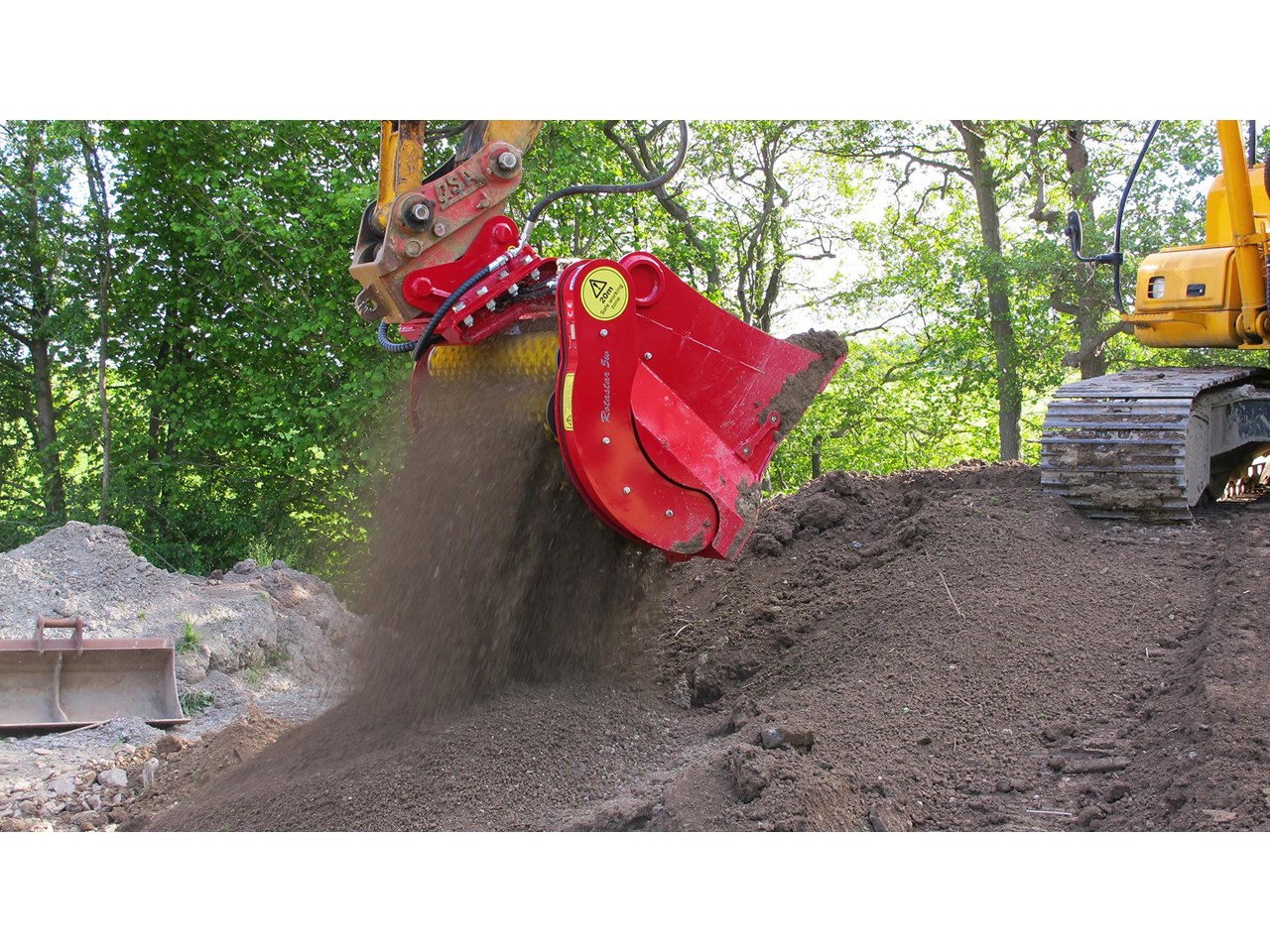

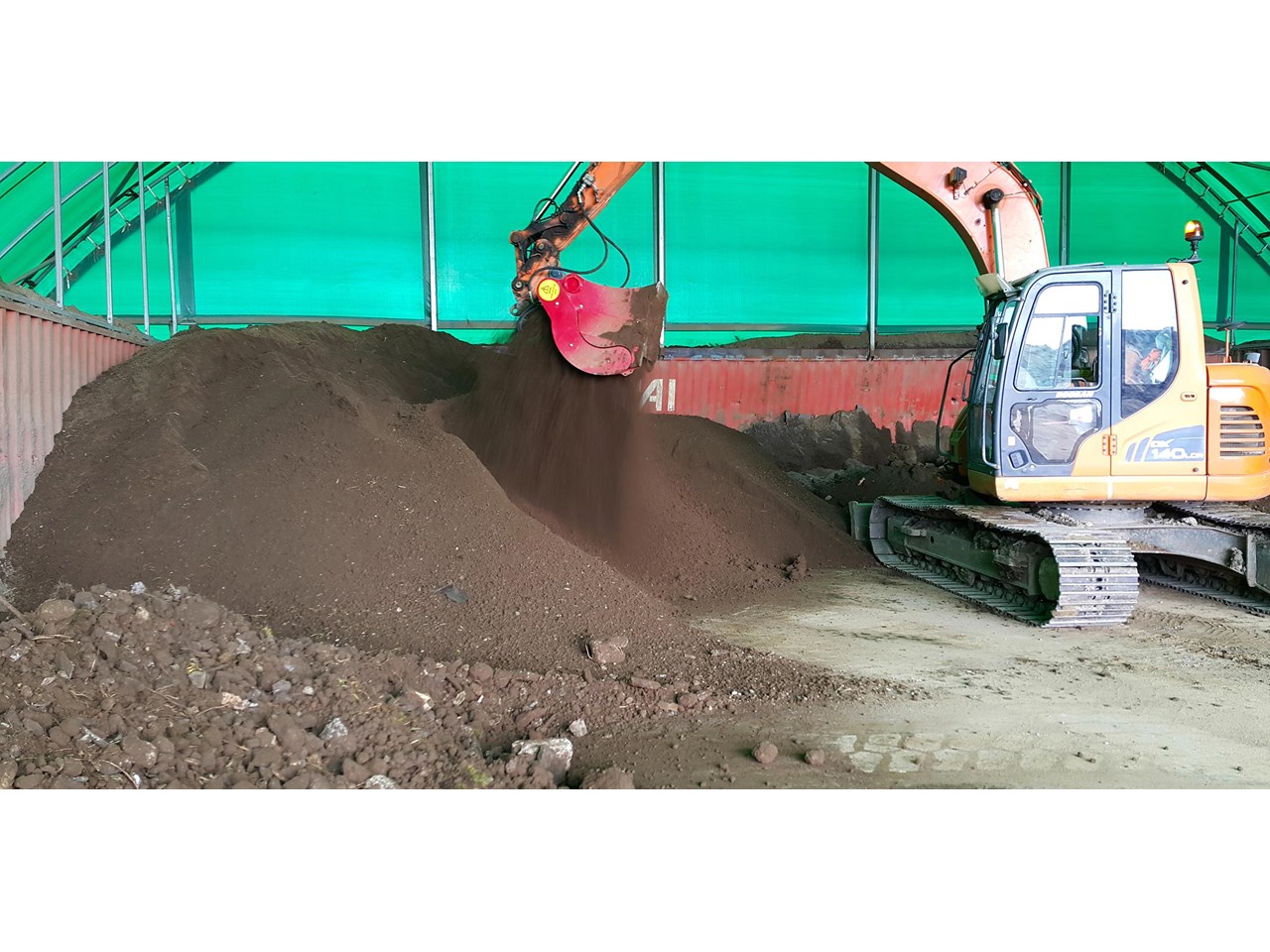

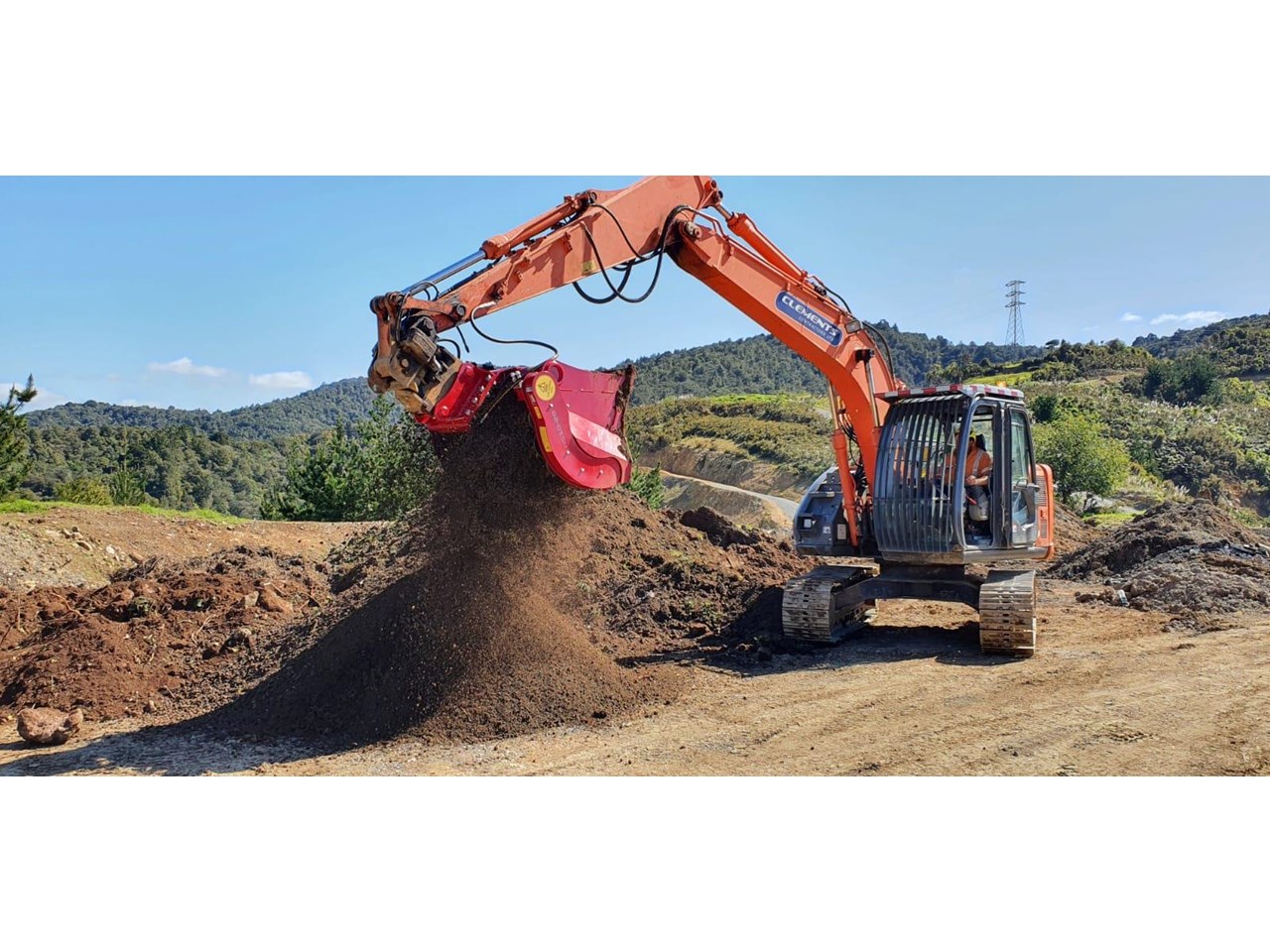

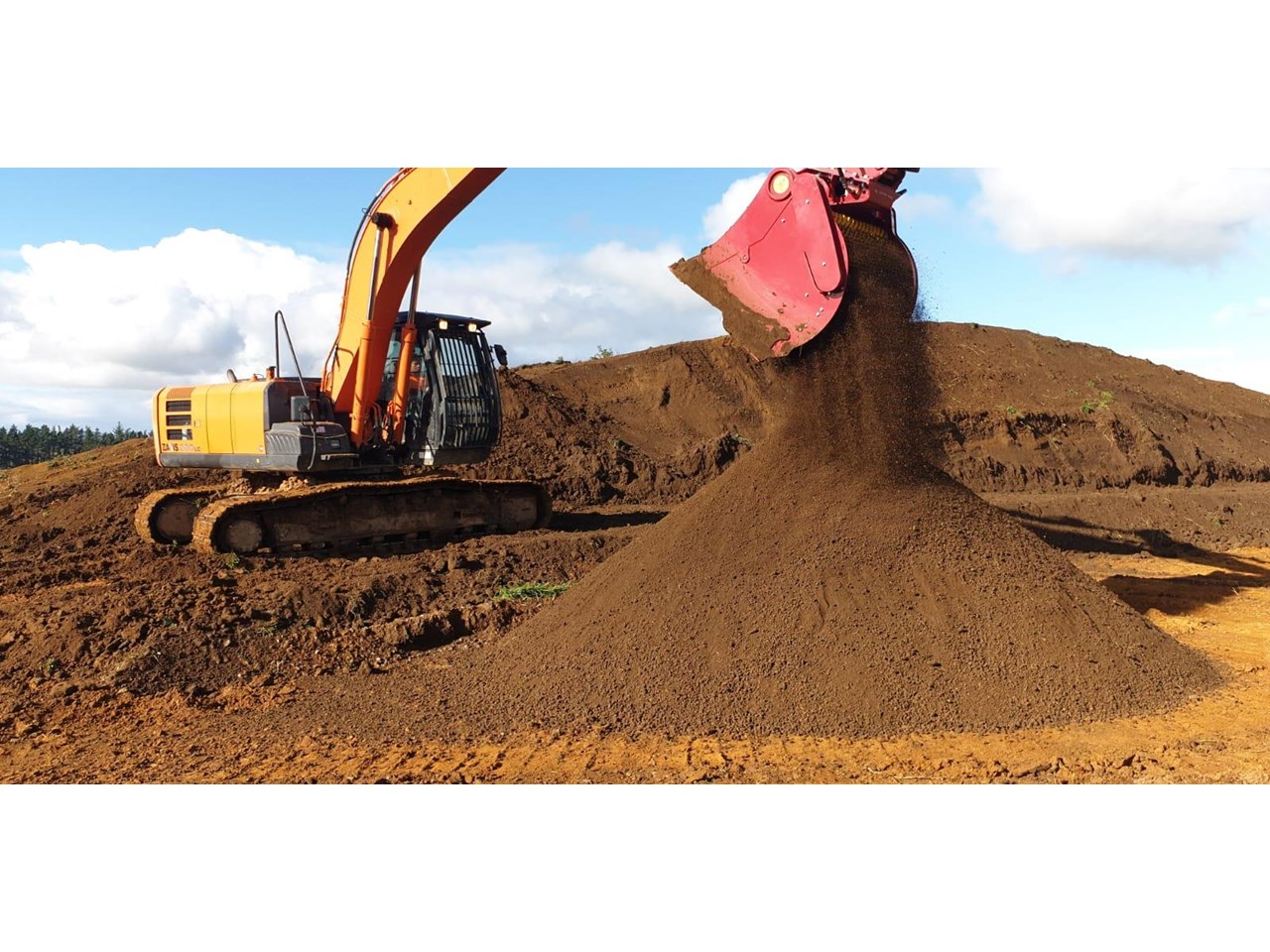

The Lloyd star bucket has a screening action that rotates the material in a similar manner to a rotary / trommel bucket but has the benefit of rotating star discs agitating and clawing at the material as it turns. This is achieved by mounting star shafts on a large arc forming the back and top of the bucket.

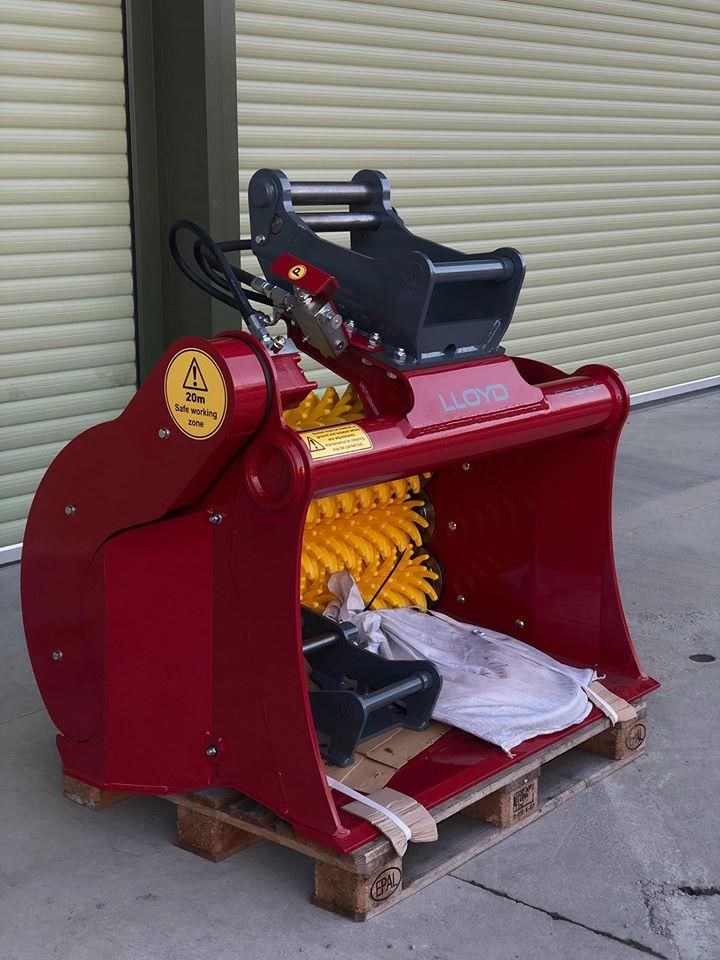

Another feature of the Lloyd star screening bucket is the light weight, flexible, self cleaning, polyurethane stars. The rotating and folding action within the bucket along with the flexible stars afford many benefits.

Features:
- Quiet running
- Flexible, Self-Cleaning, Easily Replaceable Polyurethane Stars
- Uncompromised Quality with High-Output
- Original, Unrivalled Performance
- The shafts operate in one direction only and require a standard one-way hammer circuit. This also eliminates the need for a drain line.
- Easy maintenance. The side profile design allows for easy shaft removal. The polyurethane stars are an inexpensive, easily replaceable part that reduces down time.
