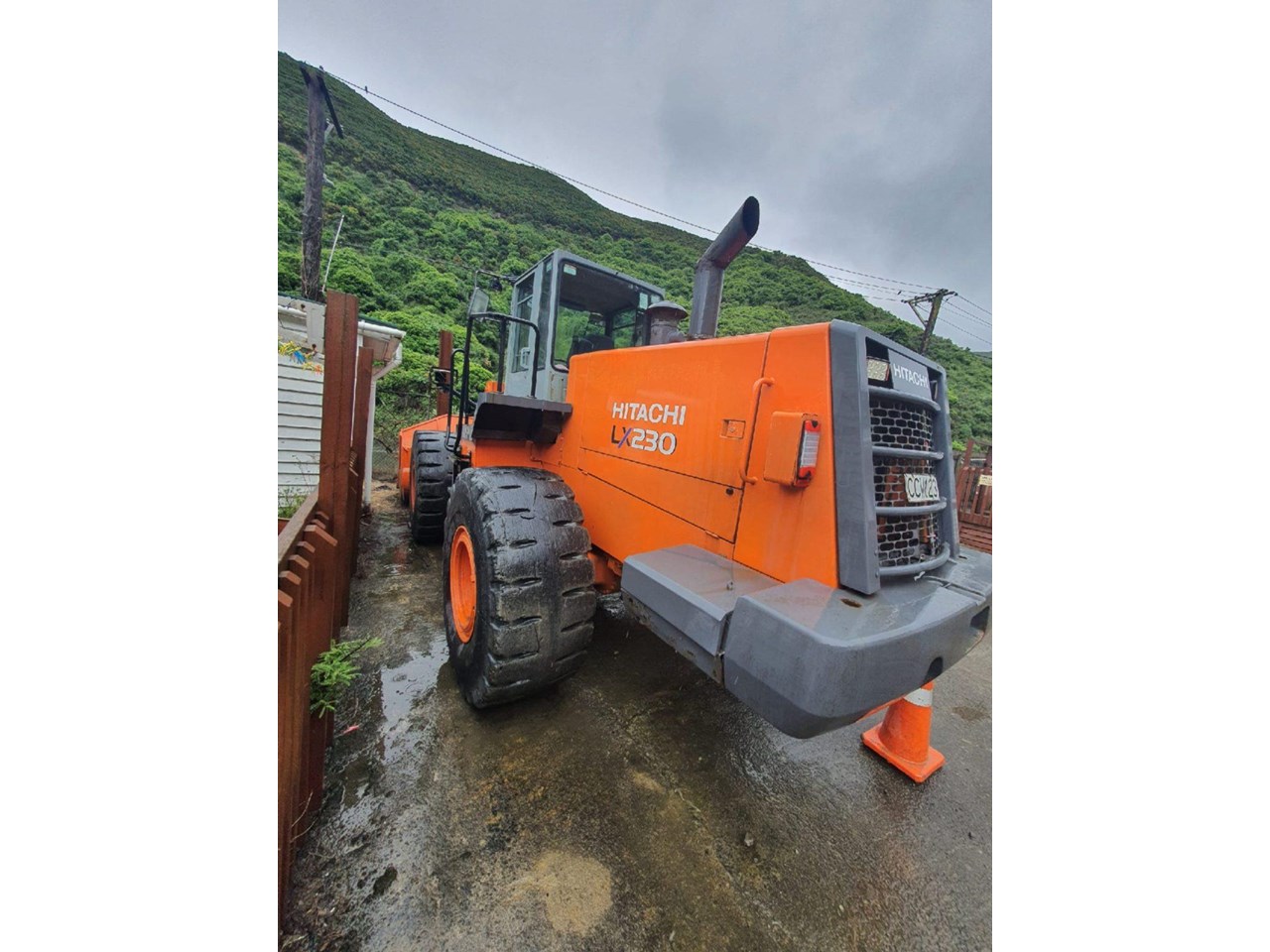

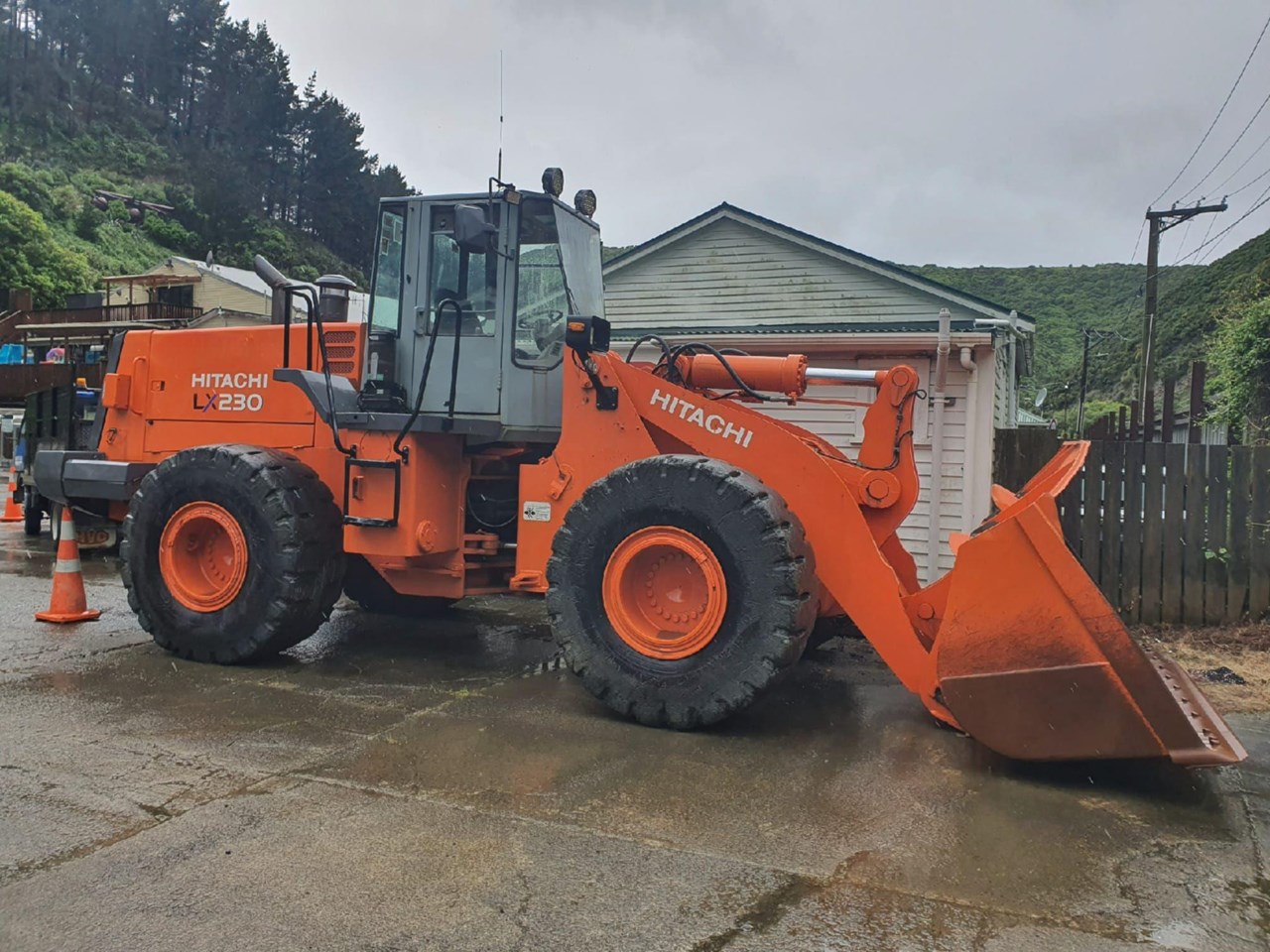

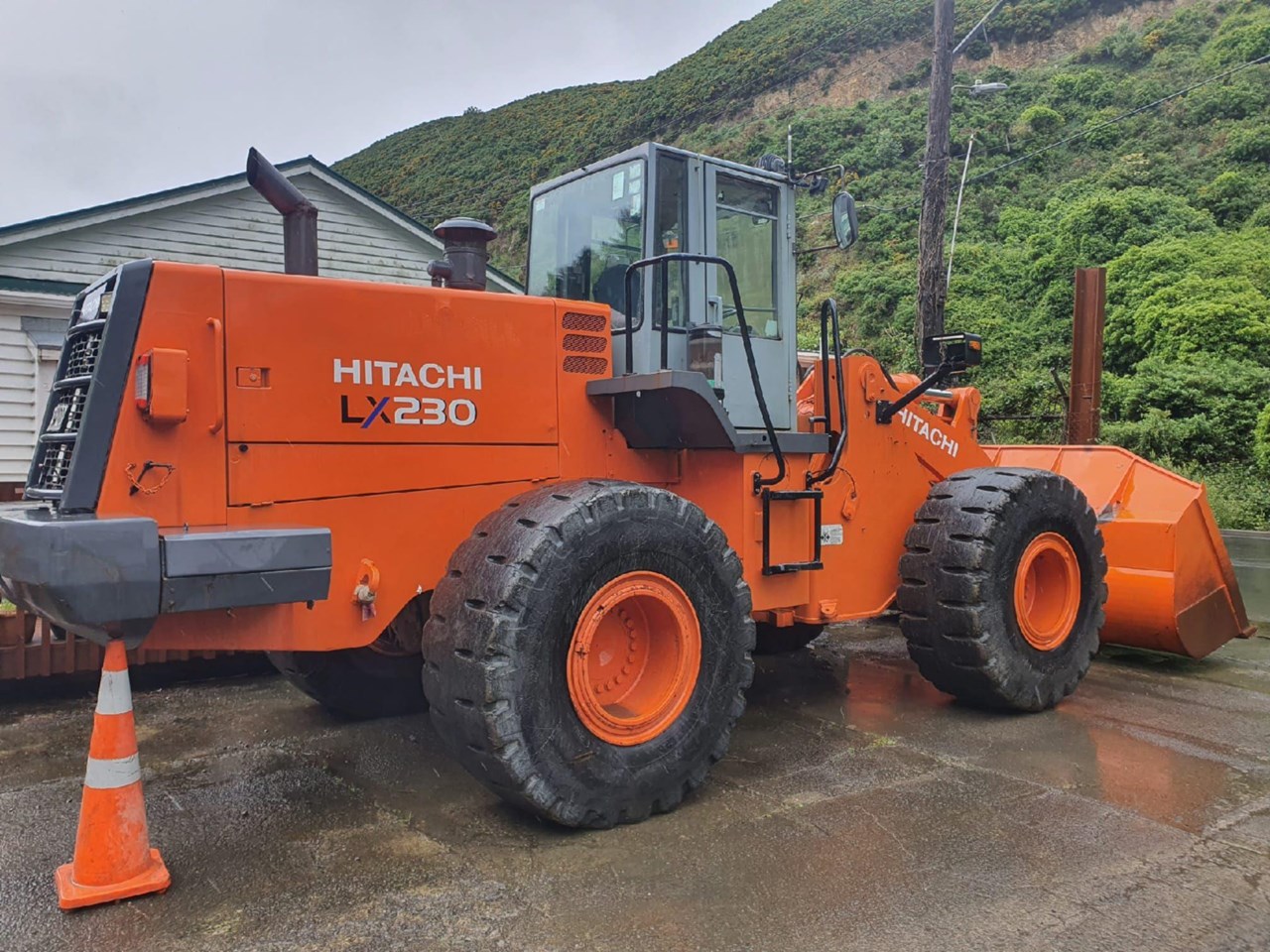

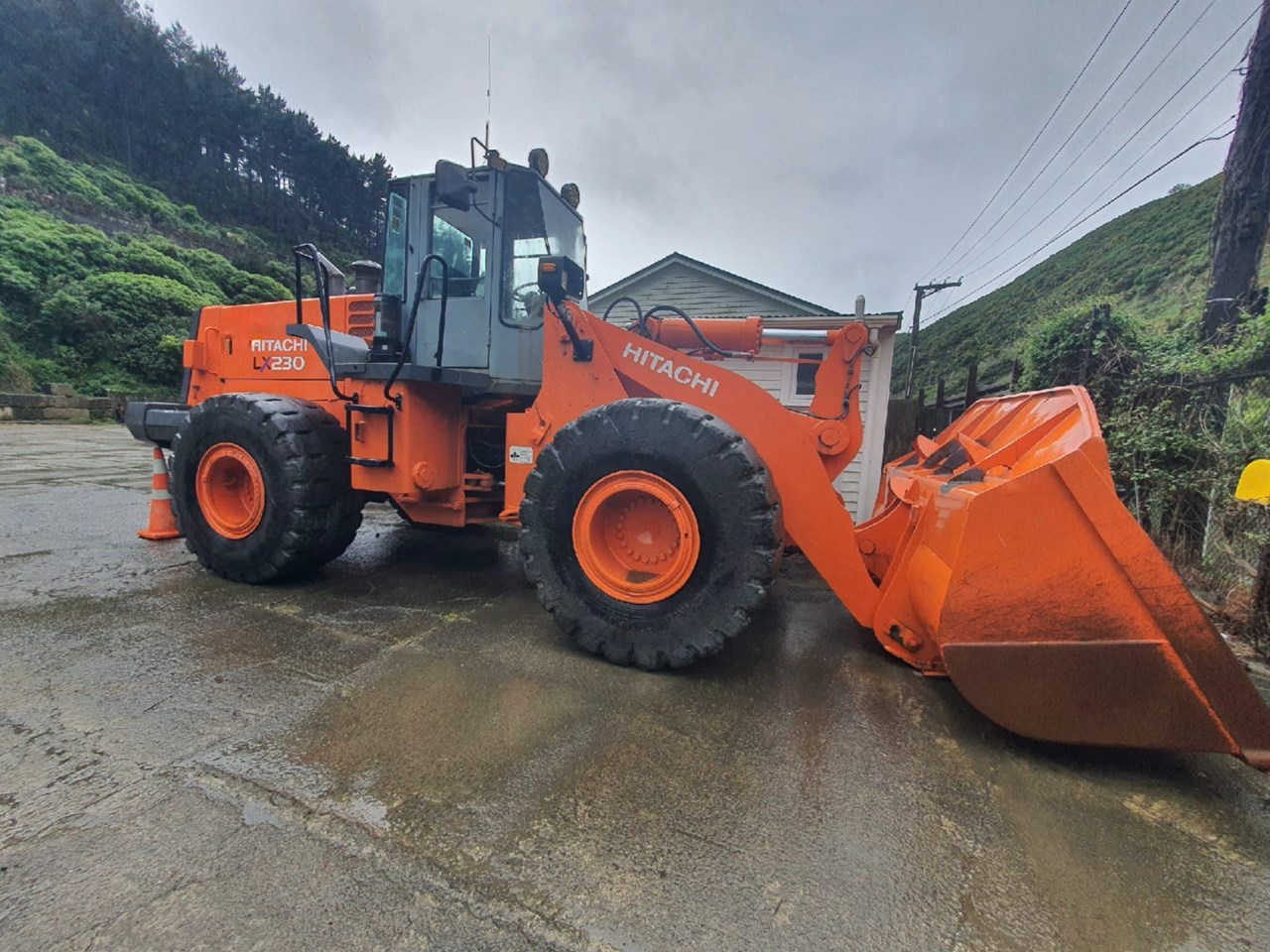

HITACHI LX 230_7A FRONT END LOADER

Units
Dimensions

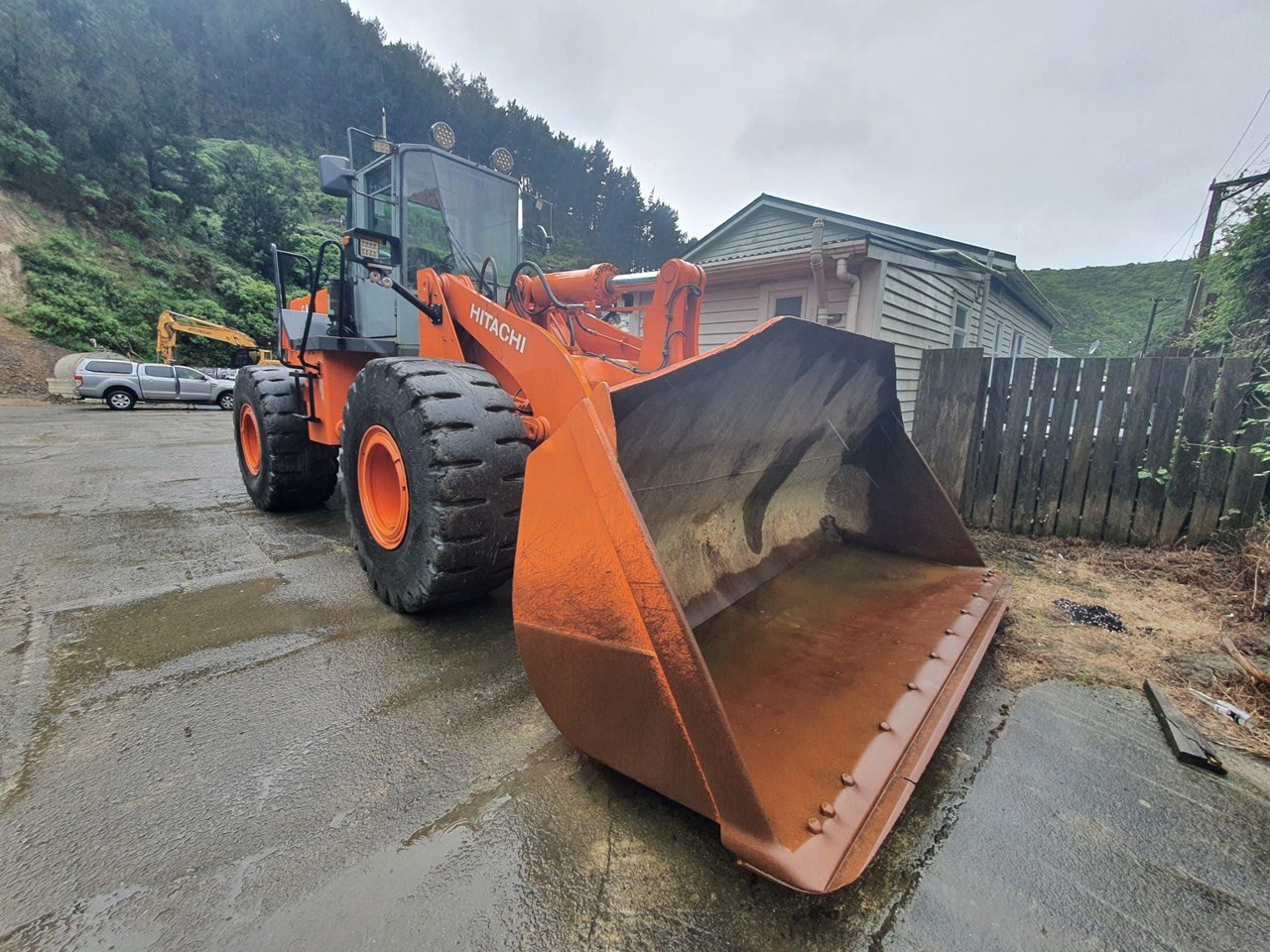

Bucket
G
Dump Clearance At Max Raise
10.29ft in

Bucket Capacity - Heaped
5.24yd3

Bucket Width
10.34ft in

Breakout Force
44512.17lb

Dimensions
E
Ground Clearance
1.71ft in

A
Length With Bucket On Ground
28.38ft in

B
Width Over Tires
9.78ft in

C
Height To Top Of Cab
11.39ft in

D
Wheelbase
11.16ft in

F
Hinge Pin - Max Height
14.39ft in

H
Reach At Max Lift And Dump
4.19ft in

Specifications
Engine
Engine Make
2251

Engine Model
6D24TL

Net Power
266hp

Power Measured @
2100rpm

Displacement
729cu in

Operational
Operating Weight
47994.7lb

Fuel Capacity
97.8gal

Turning Radius
19.1ft in

Tire Size
26.5-25-20 PR L3

Transmission
Transmission Type
4-speed full powershift

Number Of Forward Gears
4

Number Of Reverse Gears
4

Max Speed - Forward
21.5mph

Max Speed - Reverse
22.7mph

Hydraulic System
Raise Time
6.4sec

Dump Time
1.5sec

Lower Time
3.6sec

Located in Wellington
