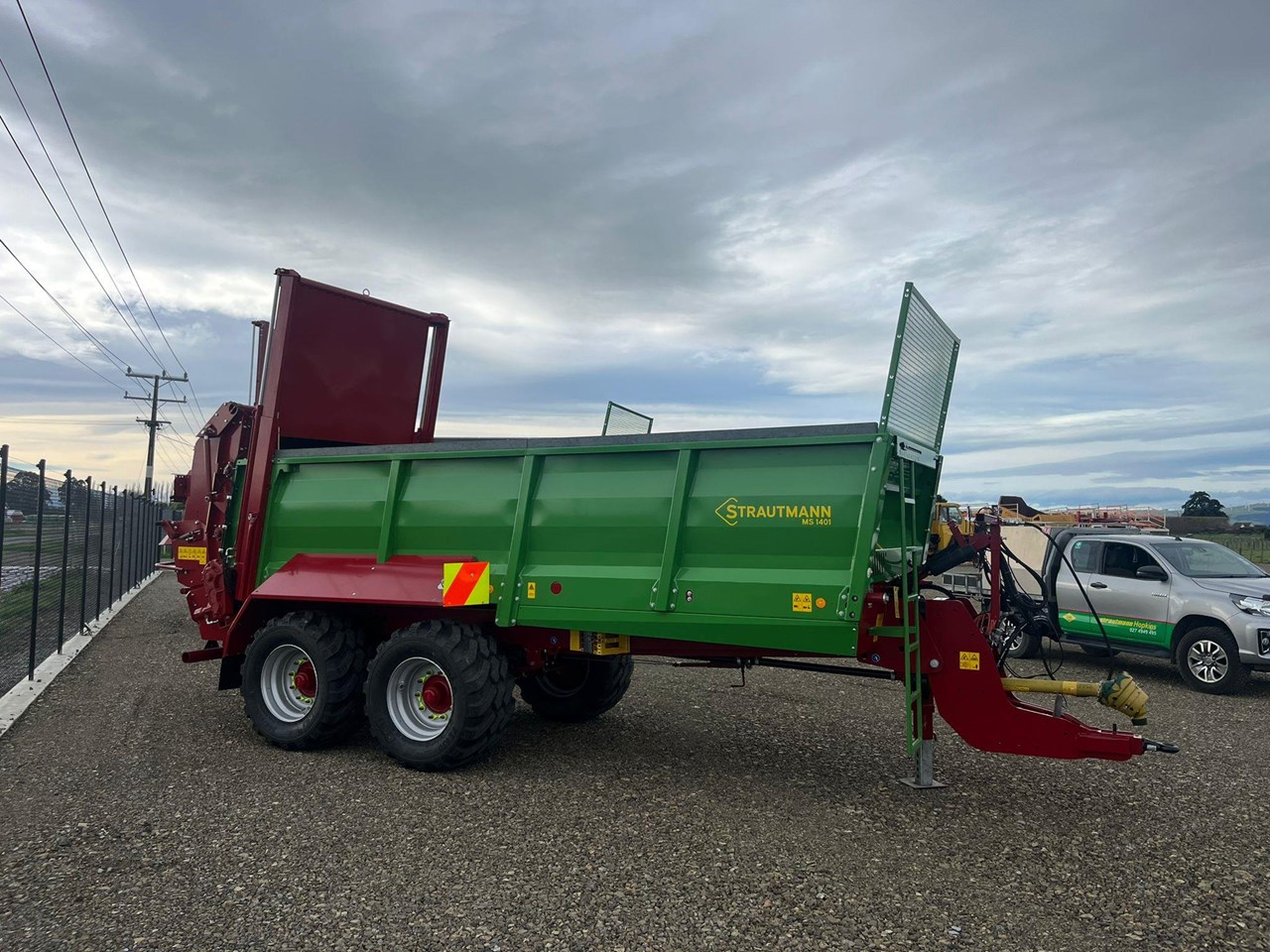

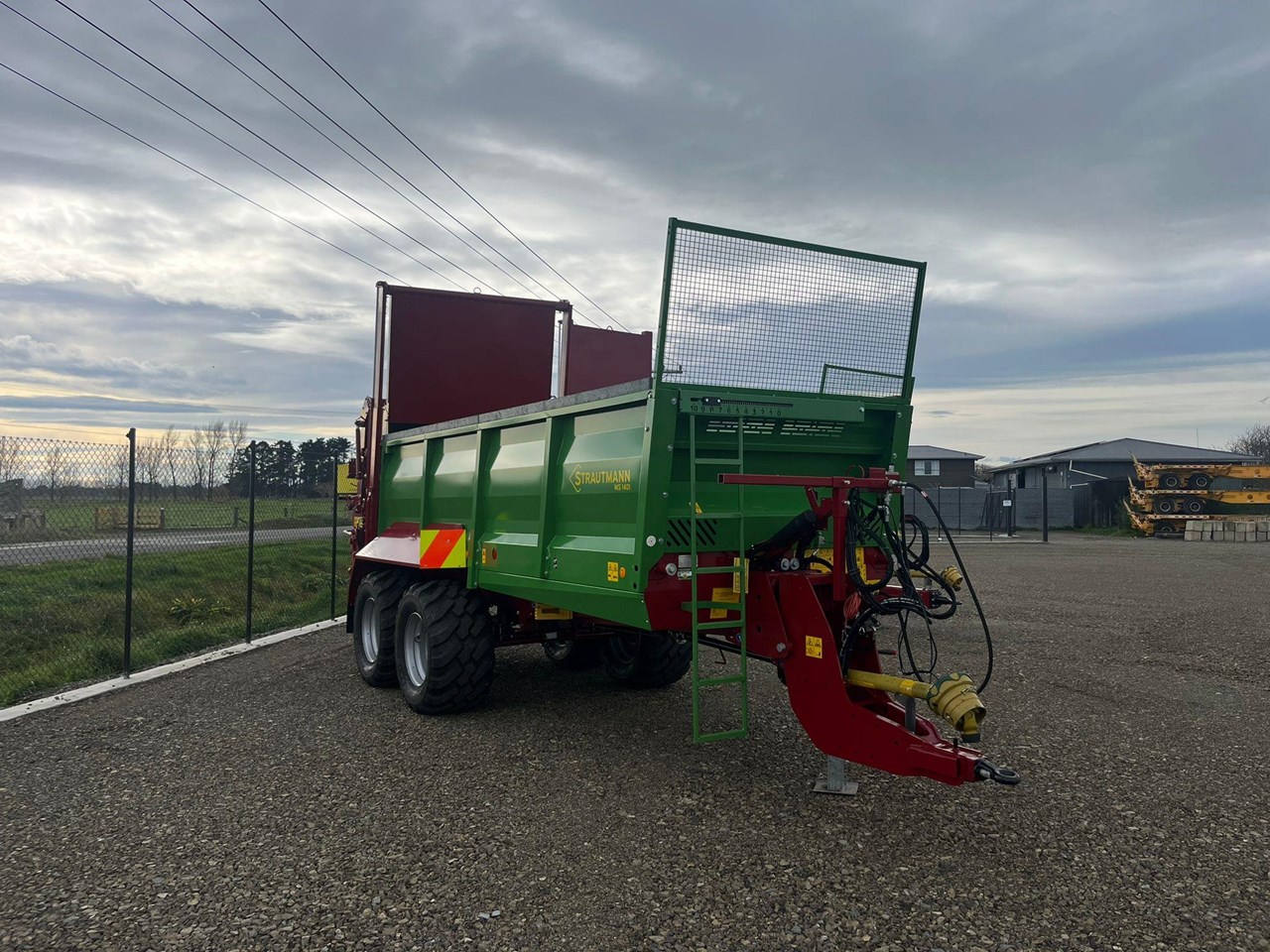

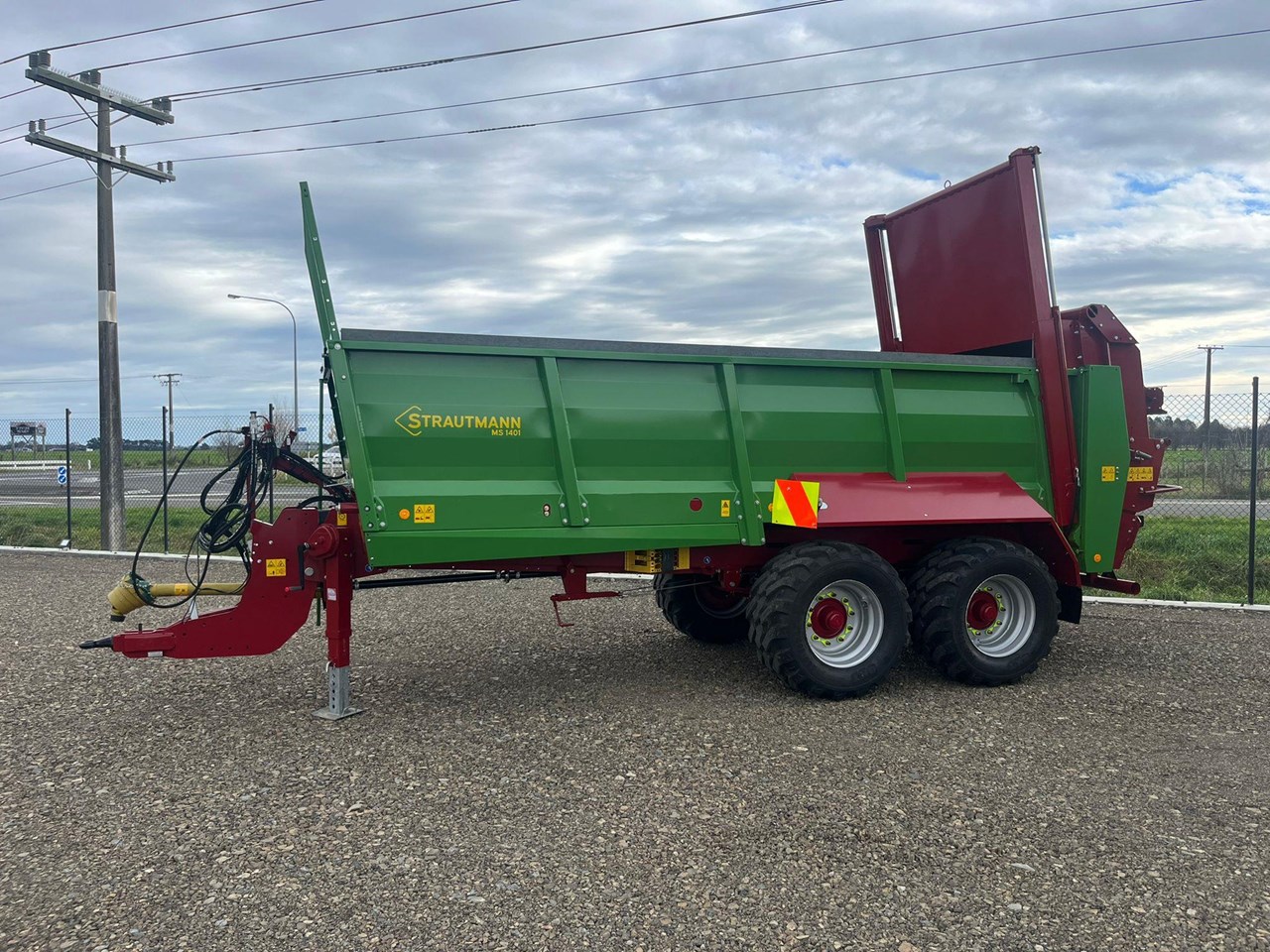

2025 STRAUTMANN MUCK SPREADER 1401 UNIVERSAL SPREADER

2-disc Spreading Unit, 11m3 Capacity
RRP includes GST

Without Scales
Twin Horizontal Beaters with chain drive plus
2 Disc Wide Angle Spreading Unit with cam clutch and revolution control, without Boundary Limiters
Hydraulic Slurry Door
Std Tandem axle (FAD) 40km/h, Wheel Base 1260mm, Wheel track 1950mm, Brakes 400x80, 10 wheel studs
Tyres 560/45 R22.5, 152D, 10-hole stud, BKT FL 630 Ultra
Hydraulic brakes, Wide Mudguards
Low Drawbar with turntable ring hitch, 3t coupling load. 2 speed mechanical jack winch
Hydraulic Control by direct connection to tractor

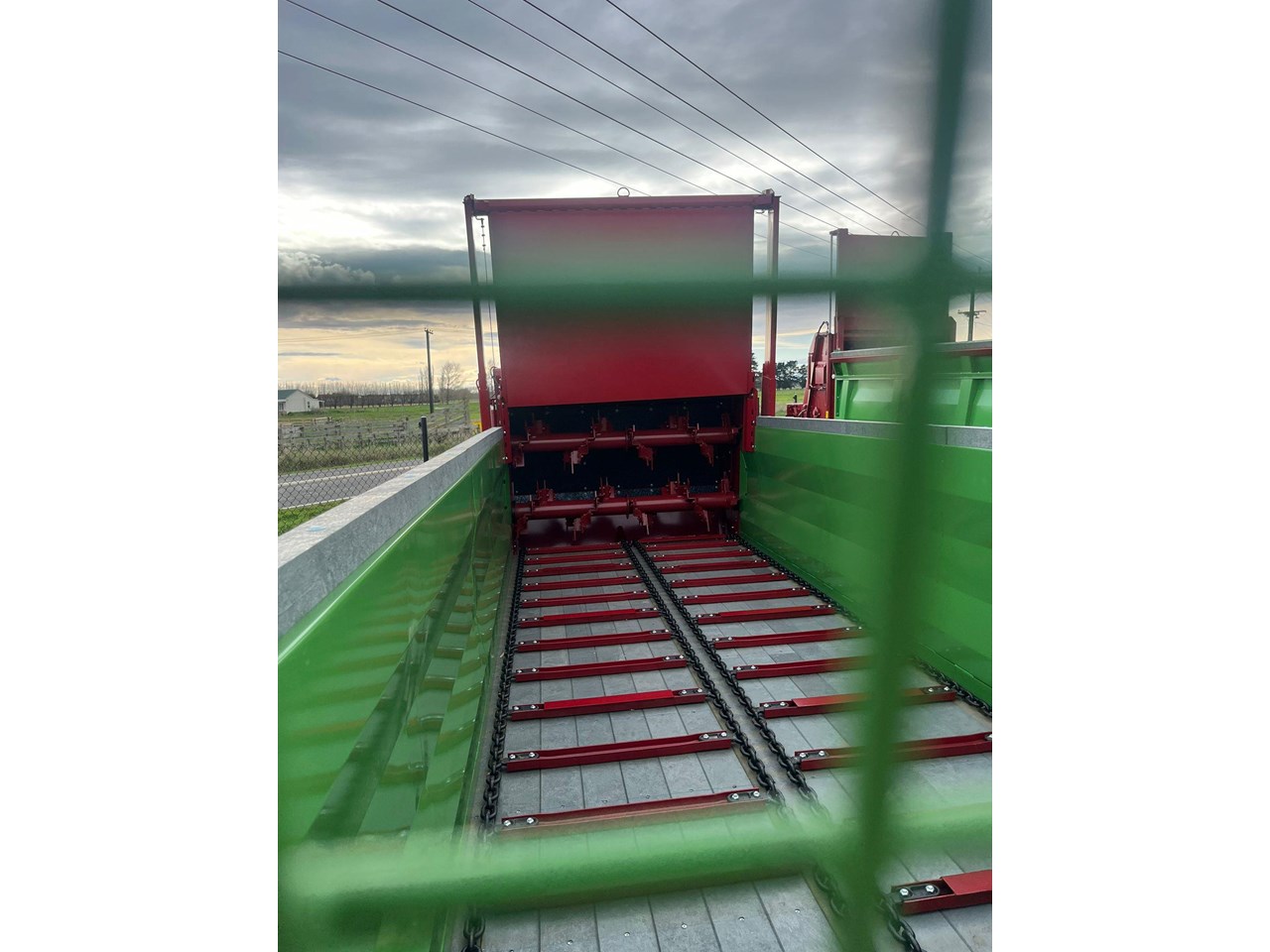

Moving floor chains hydraulically driven, 4x 13mm strong transport floor chains, Plastic Floor
PTO Shaft with one side wide angle 6 spline 1 3/8 and cam clutch 1650Nm
Tare weight 5,300kg, Length 7.58m, Width 2.51m, Height 3.23m, Loading Height 2.36m, 11m3 capacity
Minimum Power Requirement 74KW/100HP
Other Options Available, please enquire.
